E-Track System: E-Track Straps, Load Locks & Accessories

Meaning of E-Track System

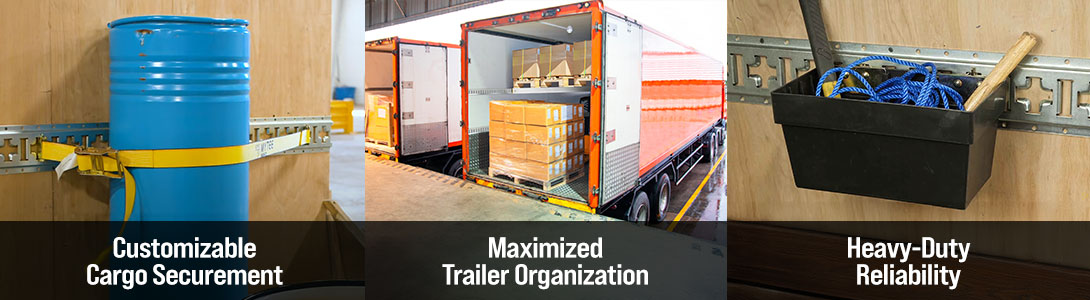

E-tracks are cargo security systems inside cargo vans and enclosed trailers. These systems restrain partial loads to the walls of the enclosed space, so the cargo doesn’t tumble or jostle back and forth during transport. E-track systems are slotted, stainless steel tie-down rails that run along the perimeter of the interior walls of the trailer or van.

Meaning of E-Track Straps

E-track straps are belts made of polyester webbing, designed to be pulled taut over loose cargo and secure your products firmly to the wall.

Two Kinds of Straps in E-Track Tie-Down

1. E-track Ratchet Straps
2. E-Track Cam Buckle Straps

These straps are also sometimes called e-track tie-down straps.

It’s easy to click the straps into place. E-track straps are fitted with end hardware (either ratchet buckles or cam buckles) specifically designed to be compatible with the tie-down rails.

E-track straps are color-coded by length. Straps have a range of weight load limits, so it can be wise to invest in heavy-duty straps.

Load Locks in E-Track Tie-Down System

Load locks are sometimes called load bars, load lock holders or cargo load locks.

These load locks are adjustable steel rods with pads on both ends. They’re designed to shore loose pallets to prevent them from tipping over during transport. Load bars use a spring mechanism to apply varying degrees of pressure to a piece of cargo. Load bars lock a piece of cargo into place when they’re positioned horizontally, with each end pressing against the interior walls.

Once in place, the bar creates a sort of “pen,” a fenced-in area for a particular piece of loose cargo. It acts like a fourth wall, creating a smaller enclosed space with the two longest interior walls and the back wall (the interior wall closest to the cab of the enclosed trailer, van or truck).

Load lock holders have a higher horizontal working load limit than e-track straps. Creating a sub-enclosure with a load bar lets you contain and secure loose cargo that’s too heavy or large to secure with e-track straps.

Check the Weight of Your Cargo

Make sure your loose cargo doesn’t exceed the weight load limit of your e track strap or load lock bar.

Choose the Type of Strap that Best Suits Your Needs

Ratchet straps are more versatile because they have more end-fitting options, and they’re great for heavy-duty products. Whereas cam buckle straps are better for slightly fragile products that could take damage more readily, and can’t handle as much pressure or tension from the strap.

Use a Cargo Net for Additional Security

Cargo nets have a variety of end-fitting options. These nets cover the back opening of your van or trailer during transport, giving you an extra layer of security.

Size wisely

Choose the length of your strap based on your cargo’s size.

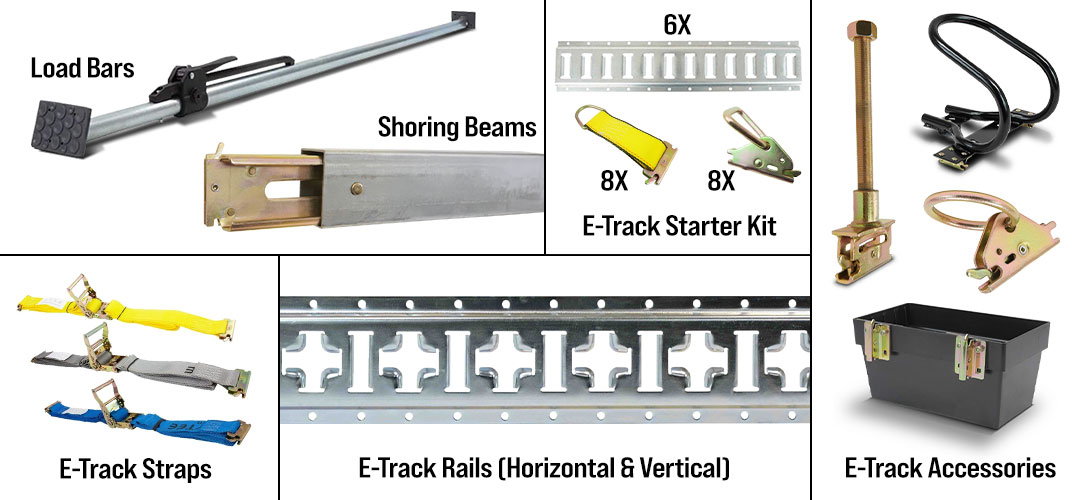

Mytee Products’ E-track Straps and Load Locks

You have a variety of options to choose from end fittings, straps type, and load lock type.

End Fittings

• E-Fitting
• Wire Hooks
• J Hooks
• Flat Hooks
• Spring End Fittings
• Over-Center Buckle

Straps Type

• Cam Buckle Strap
• Ratchet Strap

Load Lock Type

• Ratcheting Steel Load Lock
• Aluminum Beam

Where can I use e-track straps?

You can use e-track straps if you have a steel e-track rail system installed inside your van or enclosed trailer.

E-track straps have a working load limit range of about 500 lbs to 1500 lbs. If your loose cargo weighs over 1000 lbs, an individual e-track strap isn’t a safe method of securement. Instead, you’ll want to use a tool with a higher WLL, like a load lock, or an explicitly heavy-duty strap. Or, you can combine multiple e-track straps to create a cumulative higher load limit.

How can I use e-track straps and load locks effectively?

To make sure you’re getting the most out of your e-track straps and load locks, keep these pointers in mind.
