Viking 18" x 16’ Heavy-Duty Step Deck Trailer Loading Master Ramp Full Kit w/ Ramp Hangers & Bracket, 23,500 lbs Capacity

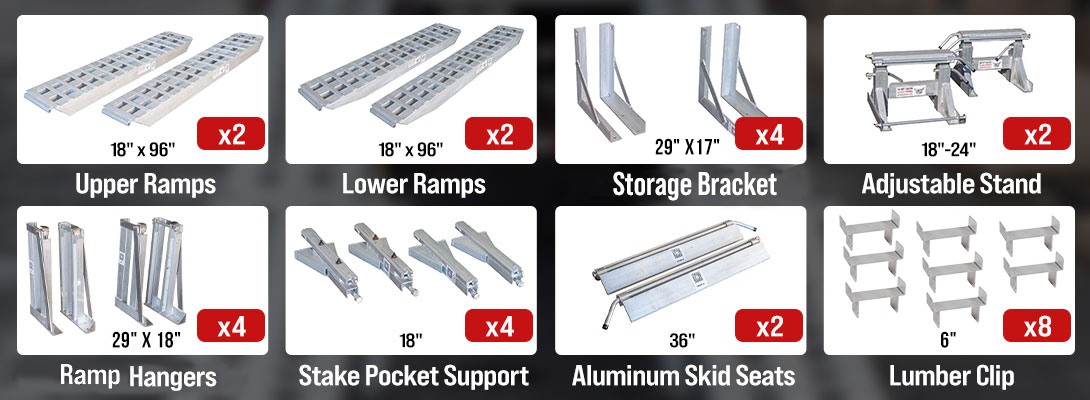

You can find the details of ramp kit inclusion below:

2 Pieces 18" x 96" Upper Ramps

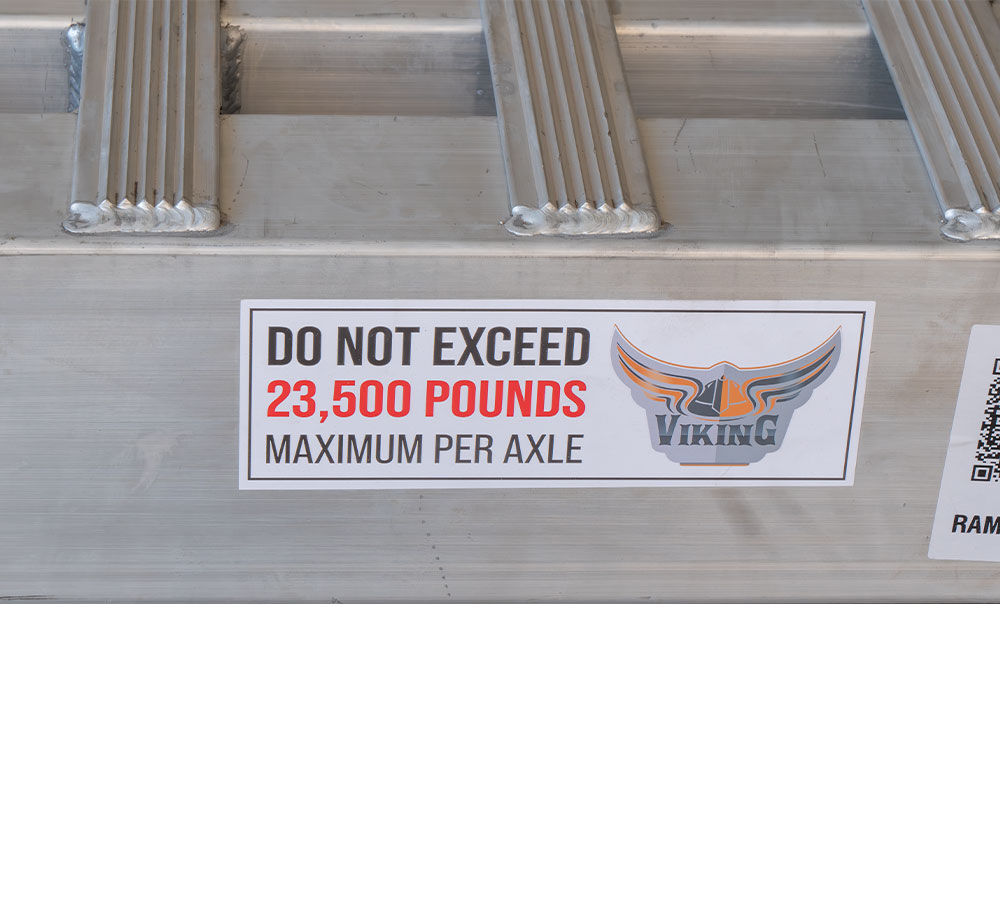

• Each upper ramp has a load capacity of 23,500 lbs per axle.
• This upper ramp makes the loading process easy. The ramp comes with a width of 18", 96" length, and 6" thickness
• The compatible size and pin end ensure a secure connection to trailers.

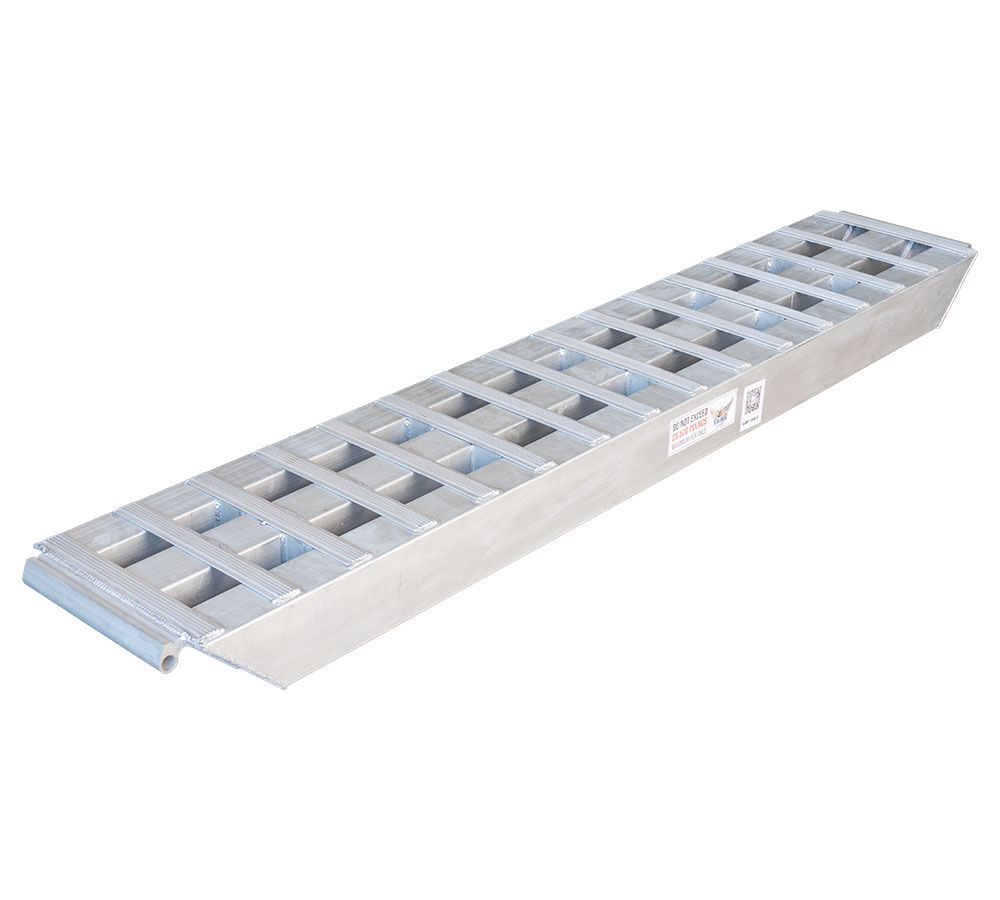

2 Pieces 18" x 96" Lower Ramps

• Each lower ramp comes with a load capacity of 23,500 lbs per axle.
• These Viking lower ramp sets are available in 18" width, 96" length, and 6" thickness making the loading process easy.
• The pin ends and a compatible size ensures a secure connection for trailers.

4 Pieces 6" Ramp Storage Hangers

• The 29" x 18" Aluminum ramp hangers are used for storing ramps with 6" thickness.
• Each pair of ramp storage hangers includes one left and right piece and features a mirror to store 2 ramps.
• They can be installed using bolt-on installation (bolts not included).

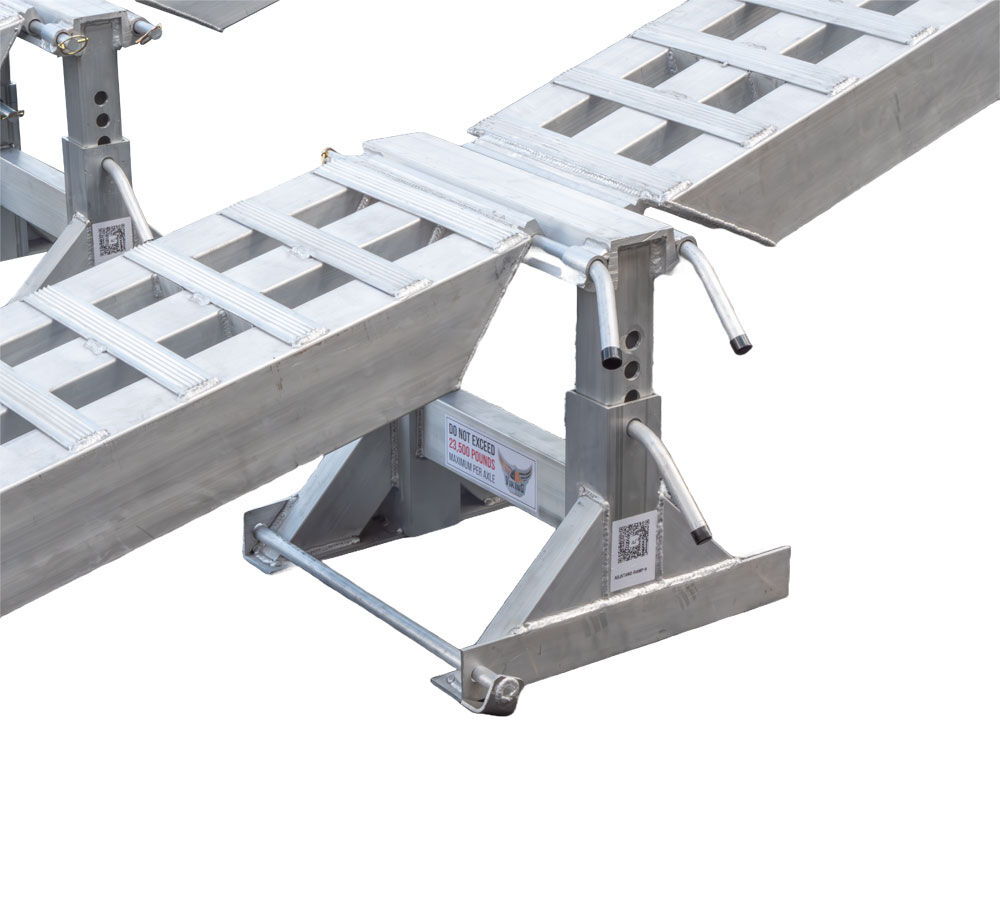

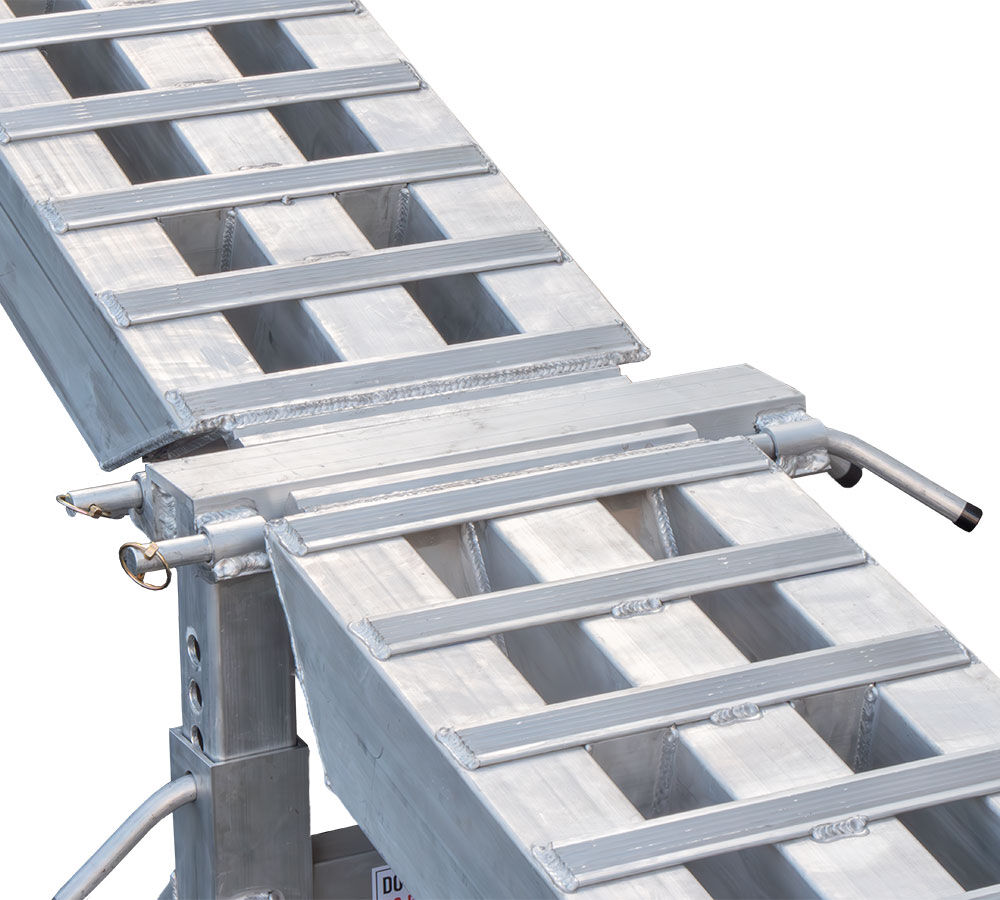

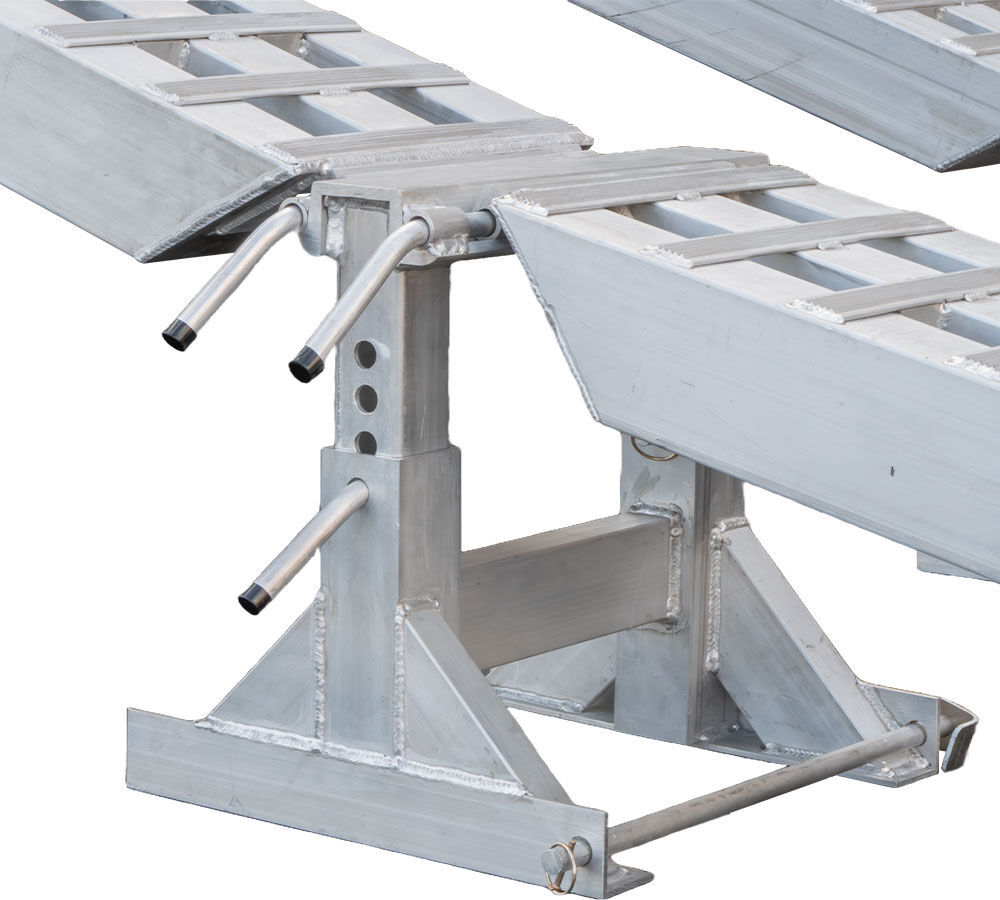

2 Pieces 18"-24" Adjustable Heavy Duty Ramp Stand

• Viking’s 2 Aluminum Ramp stands are used to support ramps during loading and unloading applications.
• These stands can be adjusted between 18" to 24".
• The adjustable ramp stands are compatible with all load-level ramps and can be hung on a hanger beneath the trailer when not in use.

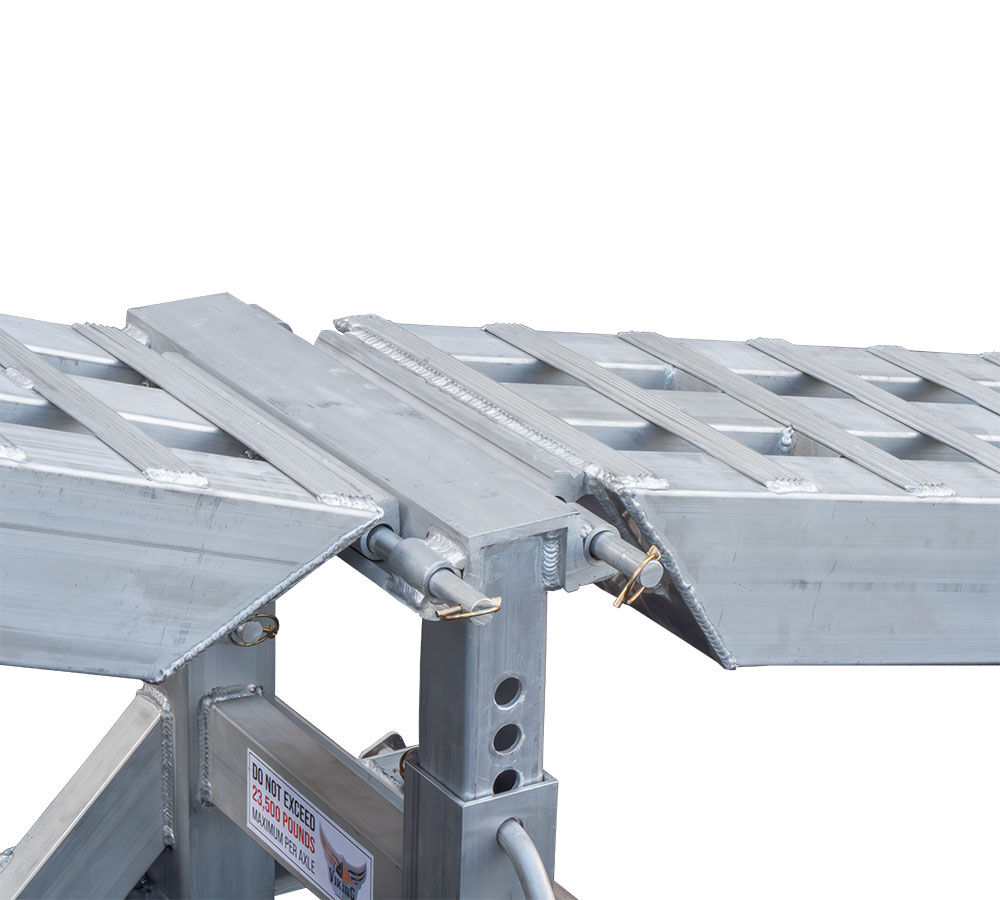

• They can be installed using a pin attachment which provides a reliable connection.

4 Pieces 29" x 17" Storage Bracket for Adjustable Stand

• The 4 pieces of 29" x 17" storage bracket for adjustable stand are compatible with I-beam trailer deck beams and are incompatible with square or round tubes.
• The package includes 4 pieces of stand storage brackets only, fasteners need to be purchased separately.
• The identical storage brackets can be installed using bolt-on installation.

2 Pieces 36" Aluminum Skid Seats

• The 2 pieces of 36" aluminum skid seats equipped with locking rods and standard hitch pins ensure the stability and security of the ramp system.
• These skid seats are compatible with double-deck trailers and can be mounted on both upper and lower decks.
• You can bolt the skid seats to truck trailers for installing them; however, welding provides more optimal strength.

4 Pieces 18" Load Leveler Stake Pocket Support

• These 18" load leveler stake pockets from Viking are used to hold ramps upright for use as a leveler.
• Each ramp needs two pieces of stake pockets; one left and one right.
• The ramps can be fastened using a chain binder with a 3/8" chain extension.
• The ramps are designed for standard stake pockets of 3-3/8" wide.

8 Pieces 6” Lumber Clips to Use Ramps as Leveler

• 6" lumber clamps are suitable for ramps if you are using them as levelers.
• 4 lumber clamps are required for each ramp to ensure that lumber stays in place during loading and unloading when using ramps with heavy-duty applications.
• The lumps clips are compatible with standard stake pockets that are 3-3/8" wide.

Note 1): No hardware for installation is included

Note 2): Items can either be bolted-on or welded (as per customer preference)

Note 3): Only Viking brand items are compatible with these Viking ramps and kits.
