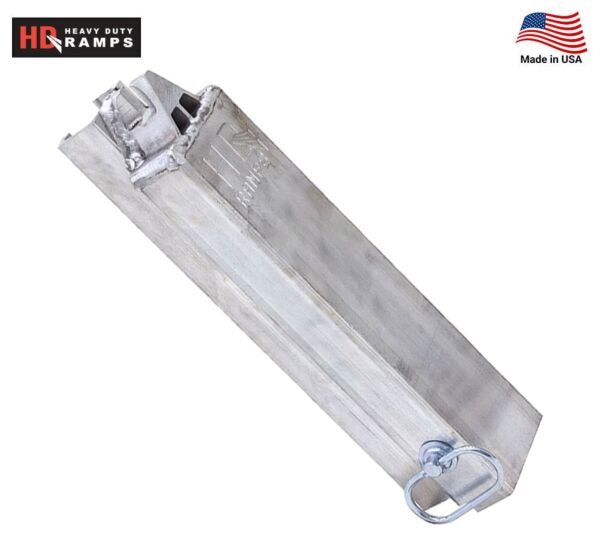

Ramp to Load Leveler Converter Stake (Left Hand Side)
Ramp to Load Leveler Converter Stake (Left Hand Side) Ramp to Load Leveler Converter Stake (Left Hand Side)

Ramp to Load Leveler Converter Stake (Left Hand Side)

92.49 USD
SKU: LRBALH-HD235K

• BUILT FOR STANDARD STAKE POCKETS 3 3/8" WIDE
• Holds ramps upright for use as levelers (1 pair required per ramp, 1 left & 1 right)
• Use chain binder with up to 3/8 chain to securely fasten stakes to trailers stake pockets

Warranty Policy:

Availability: In stock

$92.49
Product Description

    Have A Question

    0 Question | 0 Answer

    Details

    Specifications

    Weight (Lbs)10.00
    Product ColorBlack

    • BUILT FOR STANDARD STAKE POCKETS 3 3/8" WIDE
    • Holds ramps upright for use as levelers (1 pair required per ramp, 1 left & 1 right)
    • Use chain binder with up to 3/8 chain to securely fasten stakes to trailers stake pockets
    • Eight heights available to accommodate different trailer drops; 16″, 18″, 19″, 20″, 21″, 22″, 24″, and 26″
    • Getting the correct stakes is important. When using spacers, stake height = ramp width + spacer height used.
    • Some trailers have a narrow pocket. Measure stake pocket to be sure to get correctly sized stake inserts.
    • Stake inserts are designed to be reversed to allow for up to a 1″ difference in trailer rub rail widths
    • There is a connector piece at the bottom of the Converter stake. It comes in storage mode. To be deployed, it needs to be removed, flipped, re-inserted and locked. Then the converter stake is locked in place inside the trailers stake pocket. To store, repeat the operation in opposite.
    • Each Converter Stake is marked "L" or "R" For Left or Right, designated from the perspective of the person sitting on the driver's seat or, put another way, a viewer standing at the rear of the trailer looking toward the Cab side.
    • The Converter stakes must be used in pairs of Left and Right.
    • The very top of the Converter stake has a single cast piece with a slit. This is to guide the G70 chain through it.
    • When the ramp is flipped and inserted down the channels of the converter stake, the wheel surface of the ramp should be facing toward the trailer rear
    • Three "H" shaped Lumber Clips per pair of Converter Stakes are necessary to lock the lumber in place
