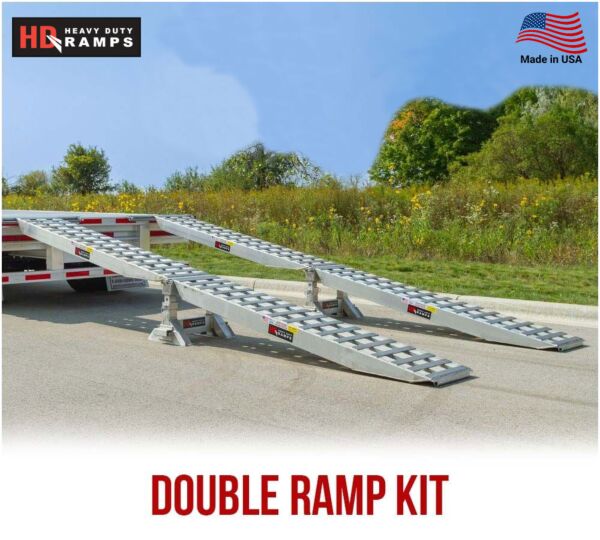

HD Ramps Trailer Loading Ramp Set - Double 16' x 18"

Our Aluminum Trailer Loading Ramps are available in an array of design styles to provide an easy transition between trailer platforms for cargo vehicles. An all-aluminum construction by AWS-certified welding technicians together with adjustable pivot points yields light-weight components that are relatively easy to handle. Most items can be conveniently stored along the trailer's main beams, or stored in one of our toolboxes. Our Loading Ramps come with numerous options. Please see the complete Master Kit for all available options and configurations.

(Qty 4) 18" x 96" Aluminum Ramps

• 23,500 lb. max per axle ramps in 18″ widths
• 8 feet in length and 5 inches thick
• All ramps have pin ends for secure connection to the trailer (requires Skid Seat) and stand

(Qty 4) Aluminum Skid Seats (Trailer Adaptors)

• Available in 36" width
• Each comes with its Locking Rod
• Welding to the trailer is preferred because of its strength, but bolting to the trailer may be used
• Aluminum Skid Seats come equipped with Rods and Standard Hitch Pins
• May be trimmed to fit around stake pockets on the upper or rear deck
• May be mounted to either or both upper and lower decks

(Qty 2) Adjustable Stand 18" - 24"

• Adjusts from 18″ tall to 24″ tall.
• Works with all Load Leveler ramps and may be hung beneath the trailer with optional hangers
• All ramps pin to stands for secure connection
• All stands come complete with a Base, Upper Section, all Pins, and Keepers

Need a Full Kit:  Explore our Heavy Duty Trailer Loading Ramp Kit that provides you with a comprehensive package to cover all your needs.

Note: Ramps and kits are only compatible with HD Ramps products.

• Warranty General Ramp.pdf
