Viking Aluminum Heavy-Duty Loading Double Ramp Kit, 18" x 16’, 23,500 lbs WLL per Axle

You can find the details of ramp kit inclusion below:

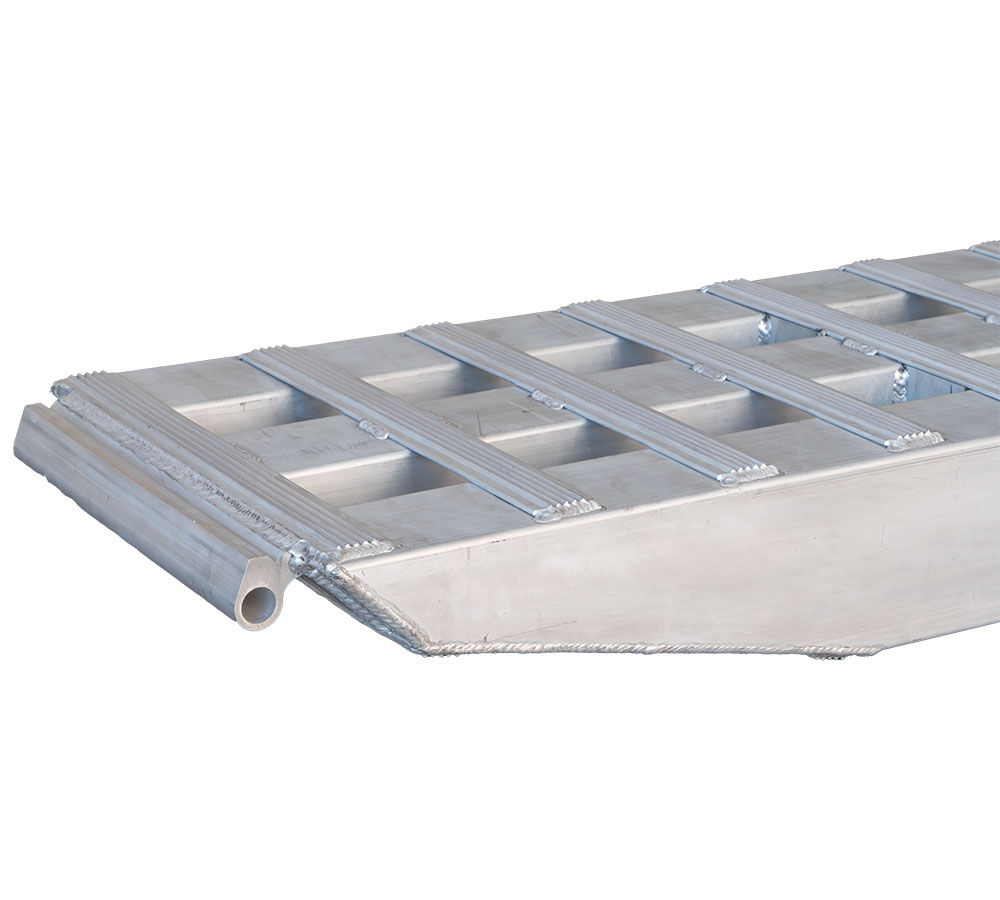

2 Pieces 18" x 96" Lower Ramps

• Each lower ramp comes with a load capacity of 23,500 lbs per axle.
• This Viking lower ramp makes the loading process easy. The ramp comes with a width of 18", 96" length, and 6" thickness.
• The pin ends and a compatible size ensures a secure connection for trailers.

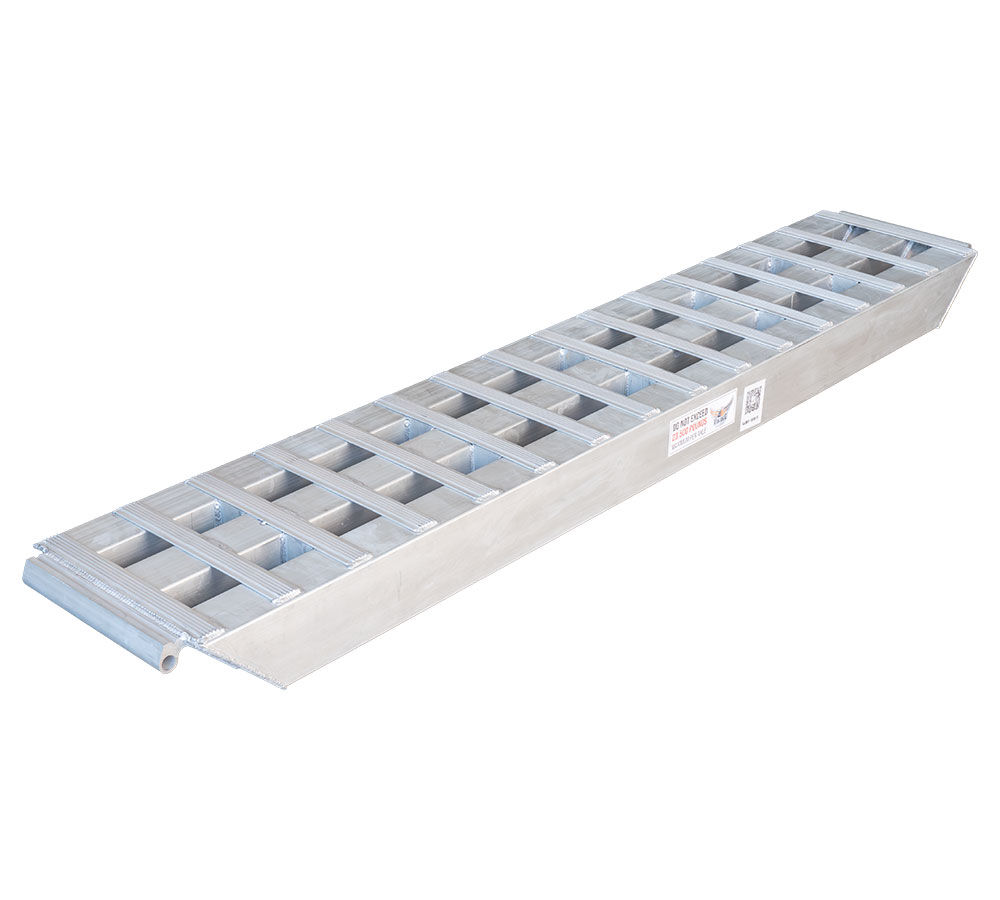

2 Pieces 18" x 96" Upper Ramps

• Each upper ramp has a load capacity of 23,500 lbs per axle.
• This upper ramp makes the loading process easy. The ramp comes with a width of 18", 96" length, and 6" thickness.
• The compatible size and pin end ensure a secure connection to trailers.

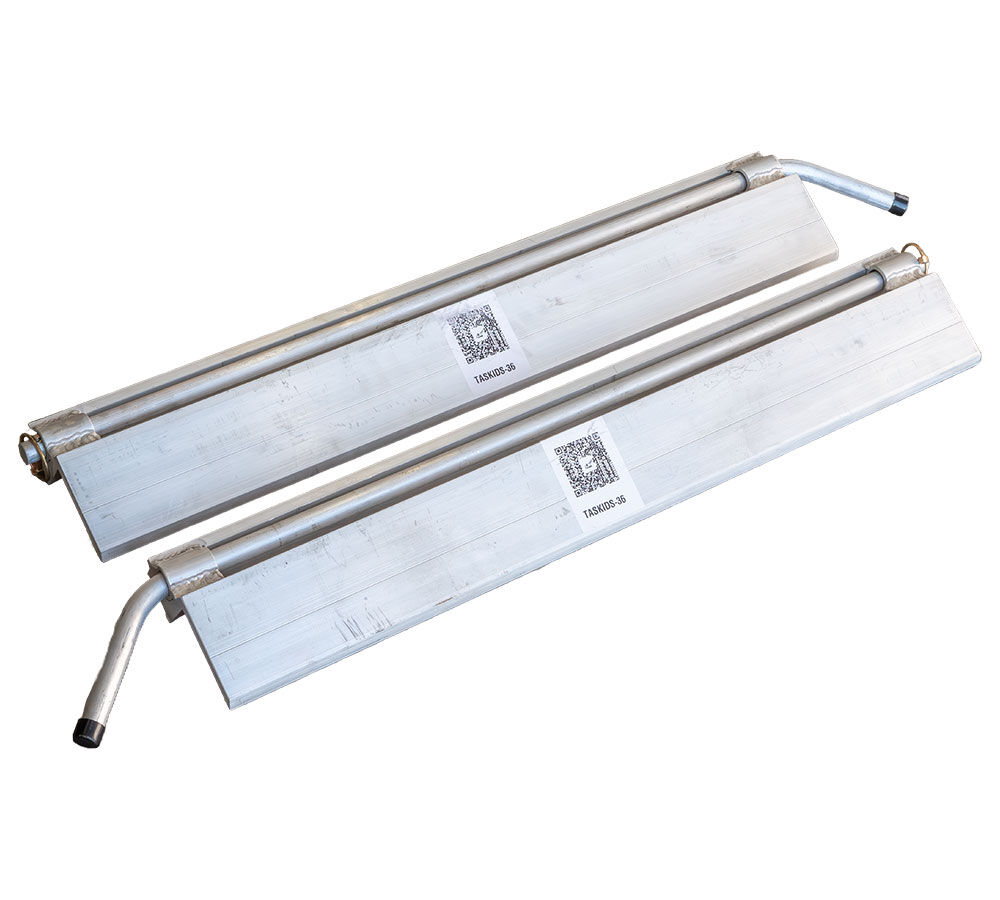

2 Pieces 36" Aluminum Skid Seats

• The 2 pieces of 36" aluminum skid seats equipped with locking rods and standard hitch pins ensure the stability and security of the ramp system.
• These skid seats are compatible with double-deck trailers and can be mounted on both upper and lower decks.
• You can bolt the skid seats to truck trailers for installing them; however, welding provides more optimal strength.

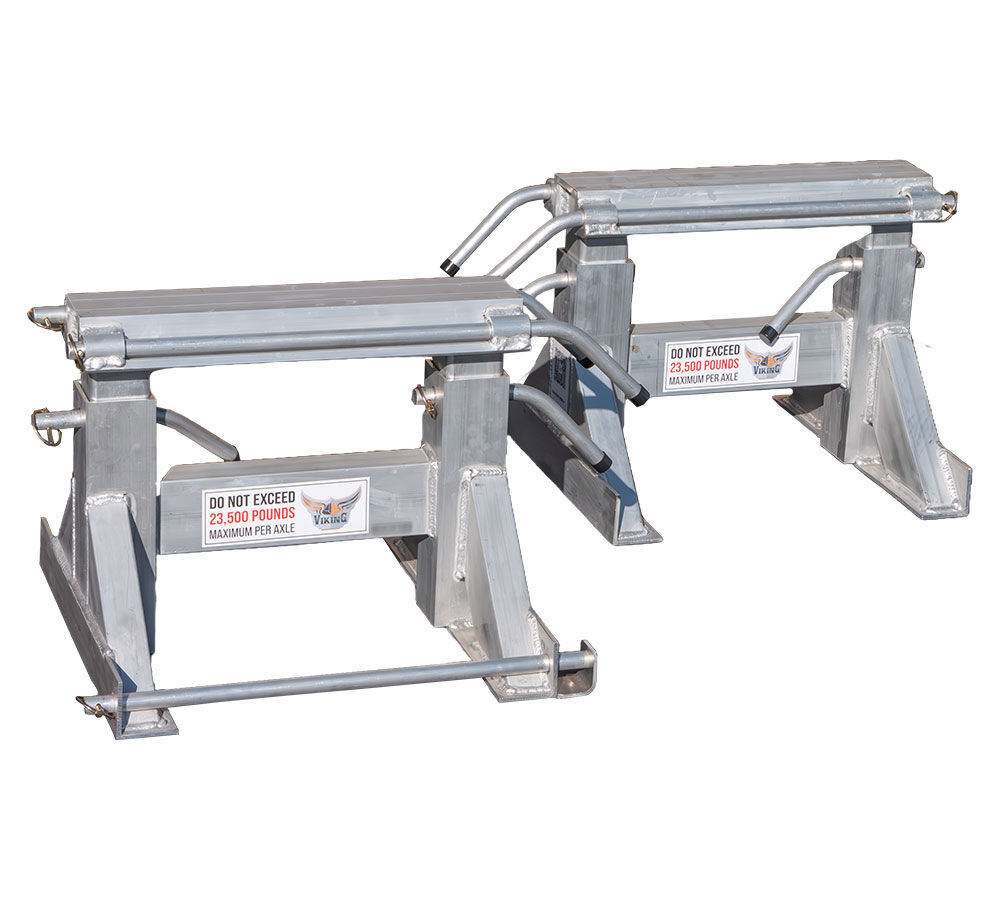

2 Pieces 18"-24" Adjustable Heavy Duty Ramp Stand

• Viking’s Aluminum Ramp stand is used to support ramps during loading and unloading applications.
• These stands can be adjusted between 18" to 24".
• The adjustable ramp stands are compatible with all load-level ramps and can be hung on a hanger beneath the
  trailer when not in use.
• They can be installed using a pin attachment which provides a reliable connection.

Note 1): No hardware for installation is included
Note 2): Items can either be bolted-on or welded (as per customer preference)

Note 3): Only Viking brand items are compatible with these Viking ramps and kits.
