Product Description
- Built for simple dump body and dump trailer tarp applications
- Tarp kits can be ordered with tarps a la carte, or as a single part number with common tarp sizes.
- Extra durable tarps feature brass grommets and heavy duty double-stitched and reinforced hems.
- Solid vinyl tarp are rated to 400º F for covering asphalt.
- Each tarp has a standard sewn-in rear pocket to fit an optional anti-sail retention bow (sold separately).
- All mounting hardware included.

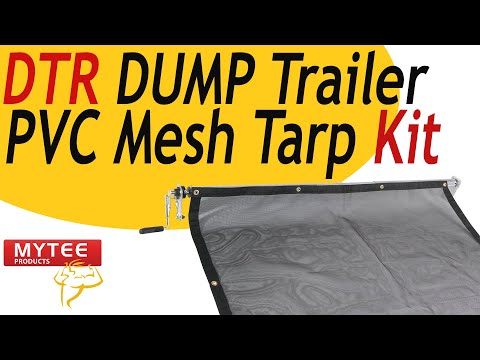

- Mytee Products DTR Series Dump Tarp Kits are built for simple dump body and dump trailer tarp applications. The durable extruded aluminum tarp roller telescopes to the exact width of your truck. All kits include: 7 in. folding crank with detent, tarp roller, a 20 ft pull-rope, rope tie down hooks, and two rubber tarp straps with S-hooks.
- The heavy duty tarps feature brass grommets with reinforced, double-stitched hems. Solid vinyl tarps are rated to 400ºF. Each tarp has a standard sewn-in rear pocket to fit an optional anti-sail retention bow (sold separately).
- The bar extends up to 8'
- Max Width : 8 ft. 6 in.
- Min Width: 5 ft. 9 in.
- Heavy Duty PVC Coated 11 x 11 Mesh
- Top 5" Pockets Made with 18 Oz Vinyl and Bottom Pocket 2-1/2" (This may vary due to hemming)
- Tough solid #4 brass grommets clinched every two feet
- All hems are re-enforced with 2" thick polyester webbing
Details
Specifications
| Weight (Lbs) | 19.25 |
|---|
Additional Information
- MYTEE PRODUCTS DTR SERIES DUMP TARP KIT
- Dump Truck Vinyl Coated Mesh Tarps Cover with 6 Inch 18oz Pocket
PVC Dump Truck Mesh tarps are made with heavy duty 11x11 PVC Coated Vinyl. These tarps are designed for most electrical and manual tarp systems and are ideal for use with Dump Trucks.
Tarp Installation Instructions Manual:-
| SKU | Tarp Option | InStock | lbs | 1 | Add To Cart |
|---|---|---|---|---|---|
| DTR-RollKit | Dump Tarp Roller Kit (Tarp Not Included) | Yes | 19.25 | $129.99 | Add |
| DTR-RollKit-PVCM56-14-PK | Dump Tarp Roller Kit w/ 5'6" x 14' PVC MESH | Yes | 37.25 | $179.99 | Add |
| DTR-RollKit-PVCM5-12-PK | Dump Tarp Roller Kit w/ 5' x 12' PVC MESH | Yes | 37.25 | $179.99 | Add |
| DTR-RollKit-PVCM6-14-AMZ | Dump Tarp Roller Kit w/ 6' x 14' PVC MESH | Yes | 27.85 | $194.99 | Add |
| DTR-RollKit-PVCM66-15-AMZ | Dump Tarp Roller Kit w/ 6'6" x 15' PVC MESH | Yes | 28.25 | $199.99 | Add |
| DTR-RollKit-PVCM66-18-AMZ | Dump Tarp Roller Kit w/ 6'6" x 18' PVC MESH | Yes | 29.6 | $204.99 | Add |
| DTR-RollKit-PVCM7-12-AMZ | Dump Tarp Roller Kit w/ 7' x 12' PVC MESH | Yes | 27.25 | $194.99 | Add |
| DTR-RollKit-PVCM7-15-D-AMZ | Dump Tarp Roller Kit w/ 7' x 15' PVC MESH | Yes | 29.25 | $204.99 | Add |
| DTR-RollKit-PVCM7-14-AMZ | Dump Tarp Roller Kit w/ 7' x 14' PVC MESH | Yes | 28.75 | $199.99 | Add |
| DTR-RollKit-PVCM7-16-AMZ | Dump Tarp Roller Kit w/ 7' x 16' PVC MESH Tarp | Yes | 30.35 | $204.99 | Add |
| DTR-RollKit-PVCM7-18-AMZ | Dump Tarp Roller Kit w/ 7' x 18' PVC MESH | Yes | 30.9 | $214.99 | Add |
| DTR-RollKit-PVCM7-20-AMZ | Dump Tarp Roller Kit w/ 7' x 20' PVC MESH | Yes | 33.25 | $219.99 | Add |
| DTR-RollKit-PVCM7-22-AMZ | Dump Tarp Roller Kit w/ 7' x 22' PVC MESH | Yes | 33.25 | $225.99 | Add |
| DTR-RollKit-PVCM7-24-AMZ | Dump Tarp Roller Kit w/ 7' x 24' PVC MESH | Yes | 37.25 | $224.99 | Add |
| DTR-RollKit-PVCM76-14-AMZ | Dump Tarp Roller Kit w/ 7'6" x 14' PVC MESH | Yes | 29.55 | $204.99 | Add |
| DTR-RollKit-PVCM76-16-AMZ | Dump Tarp Roller Kit w/ 7'6" x 16' PVC MESH | Yes | 30.55 | $219.99 | Add |
| DTR-RollKit-PVCM76-18-AMZ | Dump Tarp Roller Kit w/ 7'6" x 18' PVC MESH | Yes | 31.95 | $229.99 | Add |
Product's Review
CMS tab
Product Faqs
-
Is it possible to send me a picture and description of the hand crank roll up assembly?Thank you,Jim
We do not have a picture of that specifically.
-
I have a single axle dump truck the bed measurements are 7 ft x 12 ft what size tarp kit do you recommend
I would buy at least a 2' longer tarp to account for wind and any debris in your truck.
-
I have a 5x8 Patriot dump trailer, would your DTR-RollKit work for this? And do you have a tarp that works with your system and is the right size for my trailer. Price please. Thank you
The DTR Kit says what widths it extends too. Make sure it would fit. But we do not sell a tarp that small. you will need to custom order a tarp that small.
-
I need a 5 ft x 14 ft tarp and roller kit. I'm not seeing that size. for my dump trailer
That is not a size we have in stock. You would need to contact us at [email protected] and request a custom tarp form so we can get a price for you.
