Malleable Wire Rope Clips

SKU
MWRC-C

Size: 1/8" - 3/8"
Minimum # Clips Req: 3 - 5
Wire Rope Turn Back Length: 2' - 75'
Tightening Torque: 2' - 75'


Minimum Qty Ordered: 10 pieces




Availability: In stock
Only %1 left

* Required Fields

Malleable Wire Rope Clips
Malleable Wire Rope Clips Malleable Wire Rope Clips Malleable Wire Rope Clips

0.25 USD
Q&A Icon
Have A Question 0 Question | 0 Answer
Specifications
Specifications
Weight (Lbs) 0.10

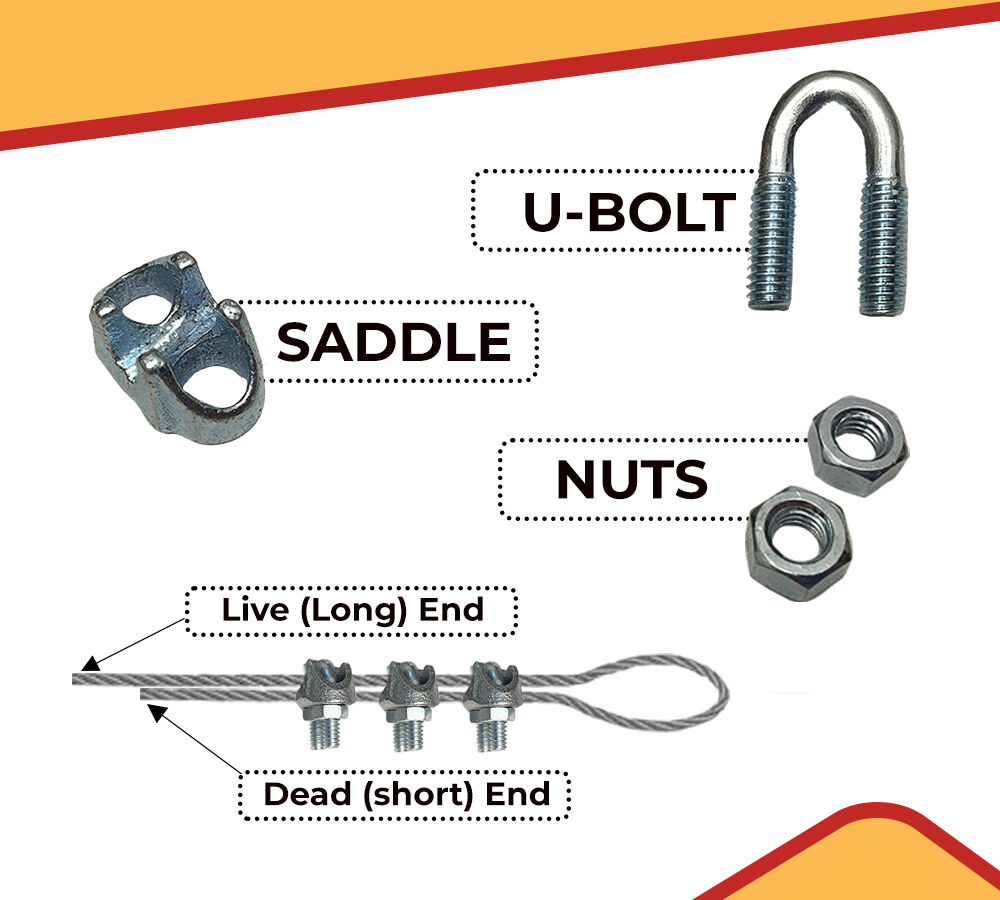

  • Wire Rope Clips, sometimes called a u-bolt or a u-bolt clip is used to clamp the loose end of a length of wire rope, once it has been looped back to form an eye.
  • They are not designed to be used in an overhead lifting situation, drop forged wire rope clips are a heavy duty wire rope clip that can be used for sustaining overhead loads.

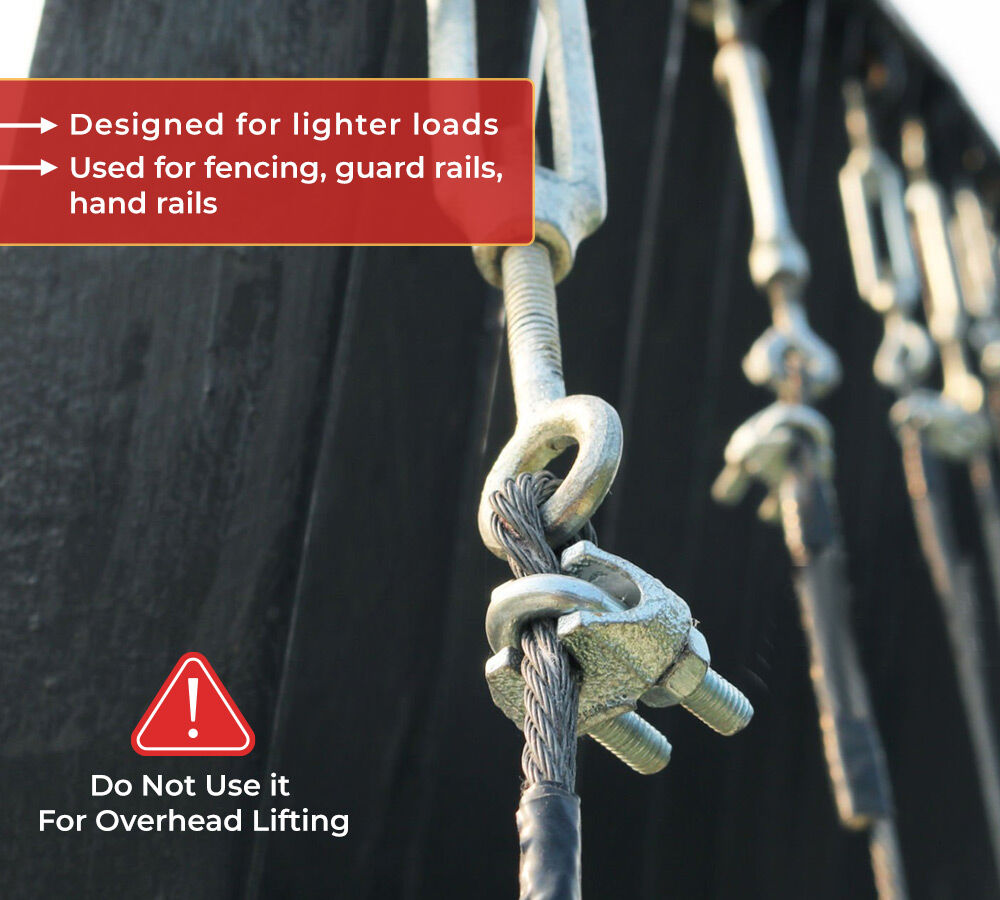

  • Malleable Clips are Light duty wire rope clip and are not for anything overhead.
  • Torque values shown are based on clean, unlubricated threads. Wire rope clips are not designed for load carrying purposes. Therefore working load limits have not been established.
  • WARNING: DO NOT EXCEED WORKING LOAD LIMIT
SKU Size InStock lbs 1 50 100 Add To Cart
MWRC-18 1/8" No 0.03 $0.16 $0.15 $0.14
MWRC-316 3/16" Yes 0.06 $0.25 $0.24 $0.23
MWRC-14 1/4" Yes 0.1 $0.40 $0.39 $0.35
MWRC-38 3/8" Yes 0.21 $0.75 $0.72 $0.69
