Product Description
Details
Specifications
| Weight (Lbs) | 2.00 |
|---|
| Product Color | AMBER |
|---|

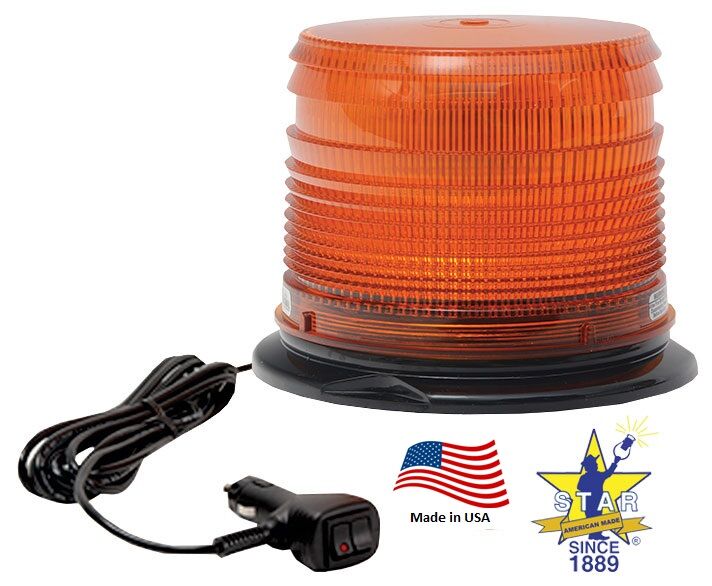

* Made in USA 5Y Guarantee
* Color: Amber
* 28 customer selectable flash patterns including steady-on
* Exceeds SAE J845 standards
* Approval: Class II
* Fully encapsulated circuitry for weather and shock resistance
* Extremely low current draw
* Star Generation IV LEDs
Durable, lightweight polycarbonate, universal flange base: three-hole permanent mount, 1” pipe mount, optional vacuum magnet or magnet mount with cig. plug
Shipped in quad flash mode
Voltage: permanent - 10-30V DC, magnet 10-16V DC
Amp Draw: 0.4 amps @ 12V DC, 0.8 amps max
Manuals:
256LED_Manual.pdf
256_Mounting_Instructions.pdf
256_Diagram.pdf
Class 2 Warning Lights
Warning lights in the Class 2 designation have a minimum of approximately 2.5 times the light intensity of a class 3 warning light. Examples of Class 2 warning light applications include utility vehicles that work along roadsides.
Class 1 Warning Lights
Warning lights in the Class 1 designation have a minimum of 4 times the light intensity of a Class 2 warning light. Examples of Class 1 warning light applications include emergency vehicles such as police, fire and ambulance.
The requirements for warning light classification requirements vary based upon the jurisdiction and application. We recommend that you consult with your local jurisdiction to determine which classification of lights is appropriate for your application.
|
