Durabilt Lever Hoists

Durabilt Lever Hoists

0 USD
SKU: DLH-C

Rated Capacity: 0.25 - 6.0 tons
Standard Lift: 5 - 20 ft
Effort for Max Load: 24.2 - 81 lbs
Lever Length: 6.3 - 16.3 in.
Hook Throat Opening: 0.83 - 3.07 in.
Minimum Distance between Hooks: 8.57 - 22.25 in
Weight: 4.08 - 83.1 lbs

Availability: In stock

$0.00

* Required Fields

$0.00
Product Description

    Have A Question

    0 Question | 0 Answer

    Details

    • Meets: ANSI/ ASME B30.21 & B30.10 design performance testing standard - OSHA complaint.
    • Grade 80 alloy hoist chain.
    • Impact resistant steel casing, gear & frame Meets: ASME B30.21/HST-3M design performance testing standard.
    • Alloy steel forged hooks designed to bend slowly as a warning sign in the event of overload.
    • 360 degree swivel-rotation on top hooks, bottom hooks and handle.
    • High strength steel stamped cold-formed casing, frame and lever handle.
    • Positive load control & brake action - Weston style load brake, 4 braking surfaces, 2 moisture resistant brake pads, double brake pawl system - fully enclosed (except 1/4 ton unit).
    • Powder coated finish to assist against potential corrosion.
    • Individual serial number and test certificate issued for operational testing to 150% of rated capacity.

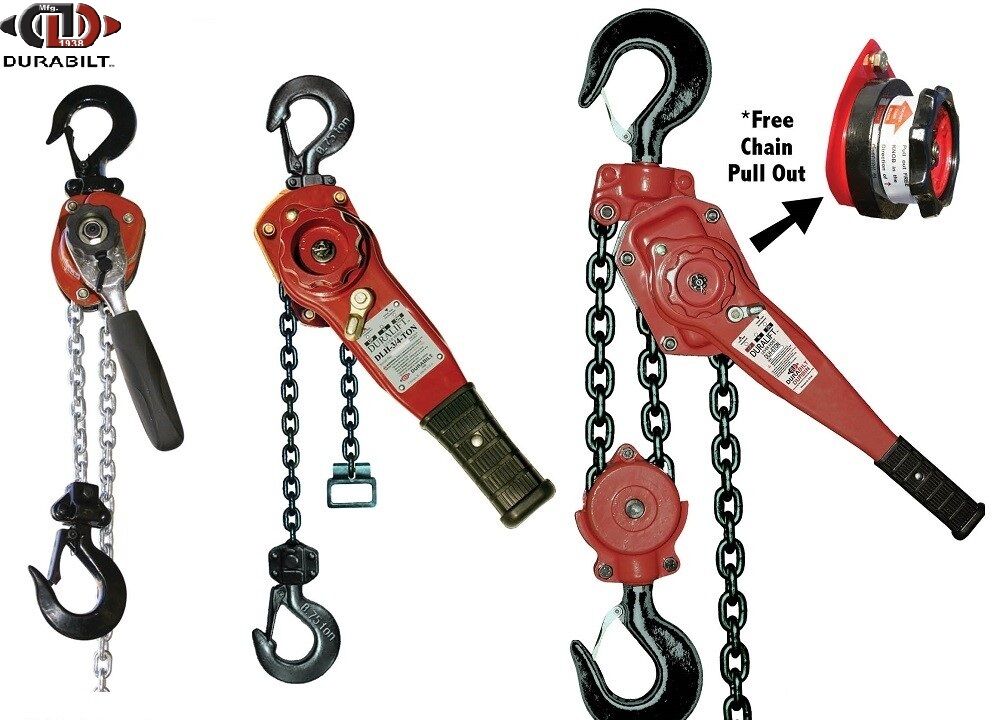

    • All hoists have "free-chaining" feature for quick slack take-up.
    • Load chain roller-guide system for efficient multi-position lifting, pulling, stretching & positioning.
    • WARNING: DO NOT EXCEED WORK LOAD LIMIT



    DLH-Chart

    Specifications



    SKUWLL Working Load Limitlbs1Add To Cart
    DLH-14-5L 0.25 Tons Rated Capacity x 5 ft Standard Lift 0.25 Tons Rated Capacity x 5 ft Standard Lift4.08$109.99 Add
    DLH-14-10L 0.25 Tons Rated Capacity x 10 ft Standard Lift 0.25 Tons Rated Capacity x 10 ft Standard Lift5.08$116.99 Add
    DLH-14-20L 0.25 Tons Rated Capacity x 20 Ft Standard Lift 0.25 Tons Rated Capacity x 20 Ft Standard Lift6.08$124.99 Add
    DLH-34-5L 0.75 Tons Rated Capacity x 5 ft Standard Lift 0.75 Tons Rated Capacity x 5 ft Standard Lift14.4$190.99 Add
    DLH-34-10L 0.75 Tons Rated Capacity x 10 ft Standard Lift 0.75 Tons Rated Capacity x 10 ft Standard Lift16.8$200.99 Add
    DLH-34-15L 0.75 Tons Rated Capacity x 15 ft Standard Lift 0.75 Tons Rated Capacity x 15 ft Standard Lift19.1$210.99 Add
    DLH-34-20L 0.75 Tons Rated Capacity x 20 ft Standard Lift 0.75 Tons Rated Capacity x 20 ft Standard Lift23.8$219.99 Add
    DLH-15-5L 1.5 Tons Rated Capacity x 5 ft Standard Lift 1.5 Tons Rated Capacity x 5 ft Standard Lift26.2$249.00 Add
    DLH-15-10L 1.5 Tons Rated Capacity x 10 ft Standard Lift 1.5 Tons Rated Capacity x 10 ft Standard Lift30$274.99 Add
    DLH-15-15L 1.5 Tons Rated Capacity x 15 ft Standard Lift 1.5 Tons Rated Capacity x 15 ft Standard Lift33.6$284.99 Add
    DLH-15-20L 1.5 Tons Rated Capacity x 20 ft Standard Lift 1.5 Tons Rated Capacity x 20 ft Standard Lift38.2$291.99 Add
    DLH-15-25L 1.5 Tons Rated Capacity x 25 ft Standard Lift 1.5 Tons Rated Capacity x 25 ft Standard Lift43.2$300.00 Add
    DLH-3-5L 3 Tons Rated Capacity x 5 ft Standard Lift 3 Tons Rated Capacity x 5 ft Standard Lift43.4$380.99 Add
    DLH-3-10L 3 Tons Rated Capacity x 10 ft Standard Lift 3 Tons Rated Capacity x 10 ft Standard Lift49.4$394.99 Add
    DLH-3-15L 3 Tons Rated Capacity x 15 ft Standard Lift 3 Tons Rated Capacity x 15 ft Standard Lift55.3$405.00 Add
    DLH-3-20L 3 Tons Rated Capacity x 20 ft Standard Lift 3 Tons Rated Capacity x 20 ft Standard Lift68.9$419.99 Add
    DLH-3-25L 3 Tons Rated Capacity x 25 ft Standard Lift 3 Tons Rated Capacity x 25 ft Standard Lift74.9$430.80 Add
    DLH-6-5L 6 Tons Rated Capacity x 5 ft Standard Lift 6 Tons Rated Capacity x 5 ft Standard Lift59$615.99 Add
    DLH-6-10L 6 Tons Rated Capacity x 10 ft Standard Lift 6 Tons Rated Capacity x 10 ft Standard Lift71.2$656.99 Add
    DLH-6-15L 6 Tons Rated Capacity x 15 ft Standard Lift 6 Tons Rated Capacity x 15 ft Standard Lift83.1$696.99 Add
